Flows

Methods:

1. Check Info

Allow partner get information about Momo wallet

Request

• Method: POST
• URL: api/pay/check-info

Name	Type	Description
requestId	String	Unique String for each request
walletId	String	Momo wallet id (phone number) need to transfer money to. Either walletId or QRString is required, If the request have both, we using walletId
qrString	String	Scan the QR Code on Momo app. () One of walletId or QRString required, If request have both, we using walletId

Response

Name	Type	Level	Description
requestId	String	L1	Unique String for each request
referenceId	String	L1	reference (billId,customerId...)
resultCode	String	L1	Result Code of request
message	String	L1	Result message
accountInfo	JsonObject	L1	JsonObject about the wallet information
name	String	L2	Client (Buyer) name
email	String	L2	Client email
mobile	String	L2	Phone number
senderInfo	JsonObject	L1	JsonObject about the sender information
name	String	L2	Sender name
email	String	L2	Sender email
mobile	String	L2	Sender number

Example

Request

{
    "requestId": "wqrwpo2343240xsad213",
    "walletId": "2313_e3w24_ddqwdq_dasdasda"
}

Response

{
    "requestId": "wqrwpo2343240xsad213",
    "referenceId": "2313_e3w24_ddqwdq_dasdasda",
    "resultCode": 0,
    "message": "Success",
    "accountInfo": {
        "name": "Nguyễn Văn A",
        "email": "test@gmail.com",
        "mobile": "0987654321"
    },
    "senderInfo": {
        "name": "Lê Thị B",
        "email": "test2@gmail.com",
        "mobile": "090010101"
    }
}

2. Transfer to one wallet

Allow partner transfer money from their wallet to other wallet

Request

• Method: POST
• URL: api/pay/transfer-one-wallet

Name	Type	Description
requestId	String	Unique String for each request
password	String	Static value as provide by Momo
walletId	String	Momo wallet id (phone number) need to transfer money to. Either walletId or QRString is required, If the request have both, we using walletId
qrString	String	Scan the QR Code on Momo app. () Either walletId or QRString is required, If request have both, we using walletId
amount	Integer	Amount to transfer
created	String	created date (YYYY-MM-DDThh:mm:ssTZD)
description	String	Short description
requireConfirm	Boolean	default = False. (if need confirming the transaction then value is True)

Response

Name	Type	Description
requestId	String	Same with request
resultCode	Integer	Result Code of request
referenceId	String	Unique for each response
message	String	Result message
paymentRef	String	Unique String for each transfer response, using for report
preBalance	Number	Partner's Balance before
balance	Number	Current Partner's Balance

Example

Request

{
  "requestId": "wqrwpo2343240xsad213",
  "password": "123456",
  "created": "2017-03-06T19:20:30+07:00",
  "walletId": "0989990105",
  "amount": 40000,
  "description": "Transfer for something"
}

Response

{
  "requestId": "wqrwpo2343240xsad213",
  "referenceId": "2313_e3w24_ddqwdq_dasdasda",
  "resultCode": 0,
  "message": "Success",
  "paymentRef": "122434546546",
  "preBalance": 1000000,
  "balance": 960000
}

3. Check status

Allow partner get check status

Request

• Method: POST
• URL: api/pay/status

Name	Type	Description
requestId	String	Unique String for each request
password	String	Static value as provide by Momo
checkRequestId	String	Request Id that need to check

Response

Name	Type	Description
requestId	String	Same with request
resultCode	Integer	Result Code of request
referenceId	String	Unique for each response
message	String	Result message
data	JsonObject	Data is the same with data of the response of function that want to check

Example

Request

{
    "requestId": "wqrwpo2343240xsad213",
    "password": "123456",
    "checkRequestId": "w240xsad213"
}

Response

{
    "requestId": "wqrwpo2343240xsad213",
    "referenceId": "2313_e3w24_ddqwdq_dasdasda",
    "resultCode": 0,
    "message": "Success",
    "data": {
        "requestId": "wqrwpo2343240xsad213",
        "referenceId": "2313_e3w24_ddqwdq_dasdasda",
        "resultCode": 0,
        "paymentRef": "ewe2342424",
        "message": "Success",
        "acceptAmount": 40000
    }
}

4. Balance

Allow partner get current partner wallet’s balance

Request

• Method: POST
• URL: api/pay/balance

Name	Type	Description
requestId	String	Unique String for each request
password	String	Static value as provided by Momo

Response

Name	Type	Description
requestId	String	Same with request
resultCode	Integer	Result Code of request
referenceId	String	Unique for each response
message	String	Result message
amount	Integer	Current balance

Example

Request

{
    "requestId": "wqrwpo2343240xsad213",
    "password": "a1234567890"
}

Response

{
    "requestId": "wqrwpo2343240xsad213",
    "referenceId": "2313_e3w24_ddqwdq_dasdasda",
    "resultCode": 0,
    "message": "Success",
    "amount": 100000000
}

5. Get Trans

Allow partner get all transaction of the day

Request

• Method: POST
• URL: api/pay/get-trans

Name	Type	Description
requestId	String	Unique String for each request
password	String	Static value as provided by Momo
date	String	Date to get all trans (yyyy-MM-dd)

Response

Name	Type	Level	Description
requestId	String	L1	Same with request
resultCode	Integer	L1	Result Code of request
referenceId	String	L1	Unique for each response
message	String	L1	Result message
data	JsonArray	L1	Array of JsonObject include these information
requestId	String	L2	Transfer request id
walletId	String	L2	Momo wallet Id (mobile phone)
amount	Integer	L2	Transfer amount
paymentDate	String	L2	Transfer date
paymentRef	String	L2	Reference Number
resultCode	Int	L2	Result Code
message	String	L2	Result Message

Example

Request

{
    "requestId": "wqrwpo2343240xsad213",
    "password": "a1234567890",
    "date": "2017-12-04"
}

Response

{
"requestId": "wqrwpo2343240xsad213",
"referenceId": "2313_e3w24_ddqwdq_dasdasda",
"resultCode": 0,
"message": "Success",
"data": [
    {
        "requestId": "122345",
        "walletId": "0989990105",
        "amount": 400000,
        "paymentDate": "2017-03-06T19:20:30+07:00",
        "paymentRef": "2313r3r34r",
        "resultCode": 0,
        "message": "Success"
    },
    {
        "requestId": "122346",
        "walletId": "0989990106",
        "amount": 100000,
        "paymentDate": "2017-03-06T19:20:30+07:00",
        "paymentRef": "2313r3r34r",
        "resultCode": 0,
        "message": "Insufficient funds"
    }
    ]
}

6. Cancel

Allow partner send request to cancel perious Transfer to one wallet. Note that system just create a ticket for Customer Service.

Request

• Method: POST
• URL: api/pay/cancel

Name	Type	Description
requestId	String	Unique String for each request
amount	Integer	Original amount
created	String	created date (YYYY-MM-DDThh:mm:ssTZD)
paymentRef	String	MomoPaymentRef of tran that need to cancel
description	String	Define the cancel reasons.

Response

Name	Type	Level	Description
requestId	String	L1	Same with request
resultCode	Integer	L1	Result Code of request
referenceId	String	L1	Unique for each response
message	String	L1	Result message

Example

Request

{
    "requestId": "wqrwpo2343240xsad213",
    "amount": 10000,
    "paymentRef": "43242423",
    "Description": "nạp nhầm tiền",
    "created": "2017-03-06T19:20:30+07:00",
}

Response

{
    "requestId": "wqrwpo2343240xsad213",
    "referenceId": "2313_e3w24_ddqwdq_dasdasda",
    "resultCode": 0,
    "message": "Success"
}

7. Confirm Transfer Transaction

Allow partner confirmed transfering money of the init transaction from their wallet to other wallet

Request

• Method: POST
• URL: api/pay/confirm-transfer-one-wallet

Name	Type	Description
requestId	String	Unique String for each request
requestIdRef	String	Amount to transfer
paymentRef	String	paymentRef in the response of init transfer-one-wallet transaction which need confirmed
description	String	Short description

Response

Name	Type	Description
requestId	String	Same with request
resultCode	Integer	Result Code of request
referenceId	String	Unique for each response
message	String	Result message
paymentRef	String	the same with paymentRef in request
requestIdRef	String	the same with requestIdRef in request

Example

Request

{
  "requestId": "wqrwpo2343240xsad213",
  "paymentRef": "542321545",
  "requestIdRef": "sfgsgdgfgfgf3544",
  "description": "confirm transfer for something"
}

Response

{
  "requestId": "wqrwpo2343240xsad213",
  "referenceId": "CONFIRM__ddqwdq_dasdasda",
  "resultCode": 0,
  "message": "Success",
  "paymentRef":"542321545",
  "requestIdRef": "sfgsgdgfgfgf3544"
}

Glossary

Error Code

Code	Message	Function	Status
0	success	All	Success
2	Cannot decrypt message	All	Fail
4	Invalid wallet Id	transfer-one-wallet,	Fail
5	Invalid password	All	Fail
7	Insufficient funds	transfer-one-wallet	Fail
8	Duplicate request Id	All	Fail
9	Invalid partner code	All	Fail
10	Unknown result.	All	Check by hand, or call check status to get the final result
11	Other error	All	Fail
17	According to State Bank of Vietnam's regulations, it is forbidden to transfer money to non-verified users.You could show them to add bank accounts so that they can receive money from you. See more at: http://bit.ly/huongdan-nhantien	All	Fail
501	Invalid capset per transaction	transfer-one-wallet	Fail
502	Invalid amount	transfer-one-wallet	Fail
506	Reject by Momo rule	transfer-one-wallet	Fail
507	Request Id not found	All	Fail
508	On process	All	Check by hand, or call check status to get the final result
510	Invalid PaymentRef	Cancel	Fail
511	Ticket has created before	Cancel	The cancel request have been created for this payment ref.
512	Cancel rejected	Cancel	Fail
513	Cancel accepted	Cancel	Cancel request have record and and on process
611	Wallet balance exceeded	Transfer	Fail
612	Wallet cap exceeded	Transfer	Fail

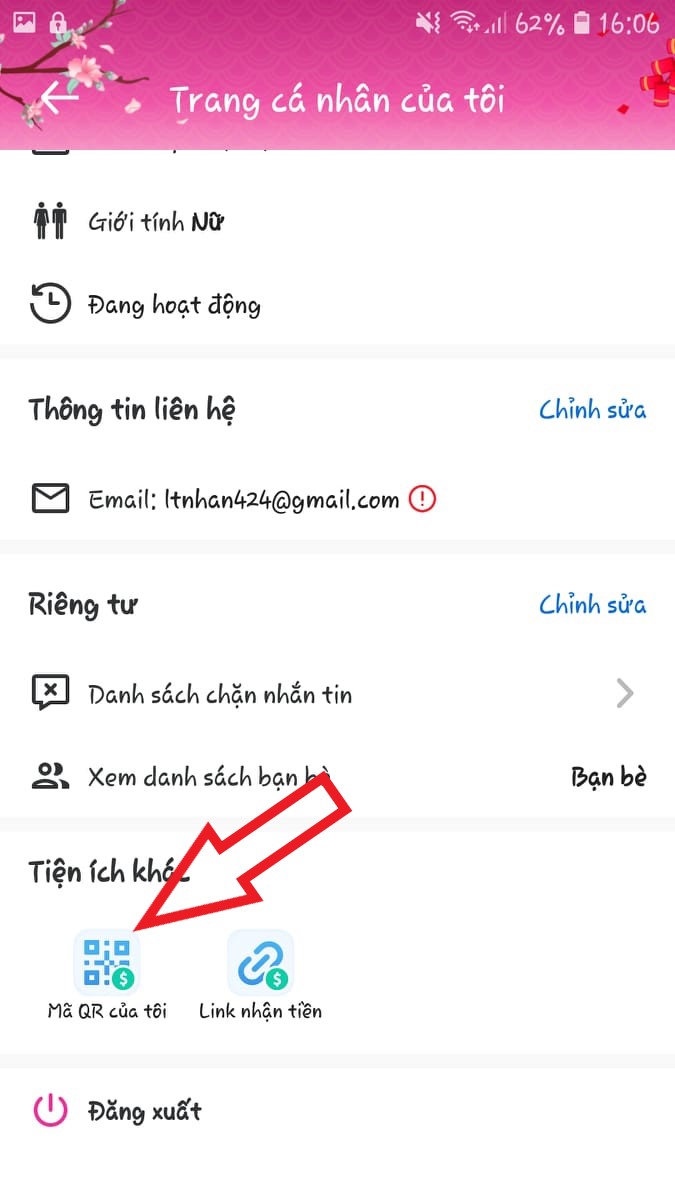

QR String

Get QR String on Momo app:
